Ignition Transformer
Description and Application
■Lenc offer oil and gas burner ignition transformers for industrial and residential applications;
■All our ignition transformers are passed CE Certificate with high quality;
■While our catalog features our most commonly sold ignition transformers, many additional models are available;
Brand: LENC
Origin: China
Technical Specification
| Item No. | Supply Voltage | Sec. | ED/AB |
| LCT-S07A | 220V 0.7A 50Hz | 2x4kV 15mA | ED20% 3min |
| LCT-S07B | 220V 0.7A 50Hz | 1x7kV 15mA | ED20% 3min |
| LCT-S08 | 220V 1.1A 50Hz | 1x8kV 15mA | ED33% 3min |

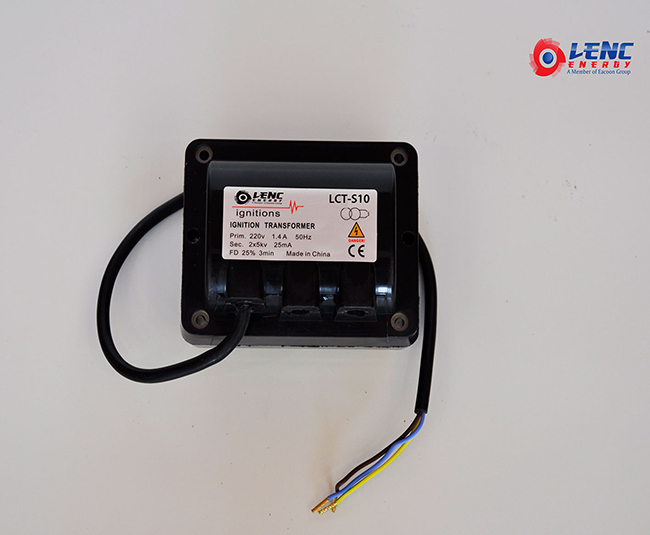

| LCT-S10 | 220V 1.4A 50Hz | 2x5kV 25mA | ED25% 3min |

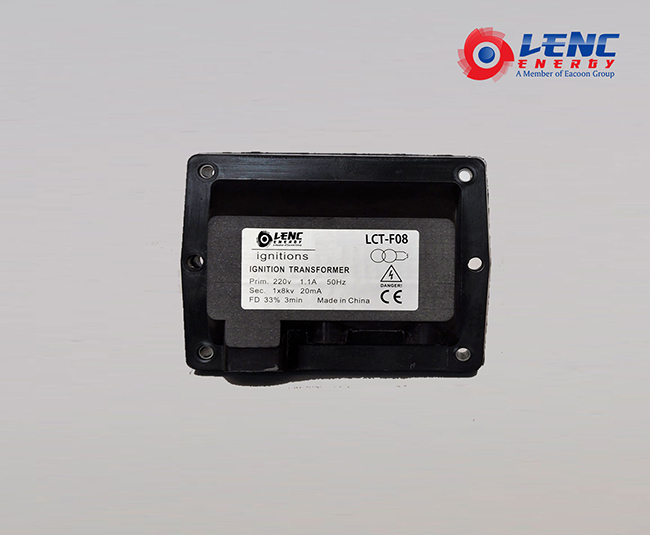

| LCT-F08 | 220V 1.1A 50Hz | 1x8kV 20mA | ED33% 3min |
| LCT-F10 | 220V 1.4A 50Hz | 2x5kV 25mA | ED25% 3min |
| LCT-A18 | Enter220-240V 30VA 50/60Hz | Output2x12kV Vpp20mA | AB 33% 3min |

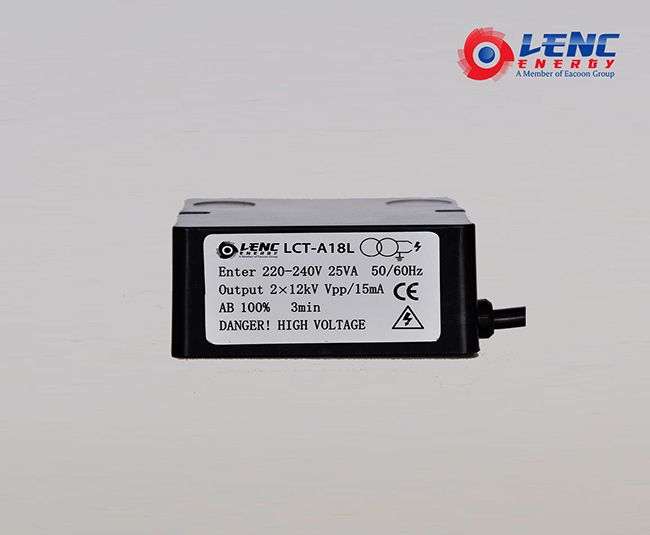

| LCT-A18L | Enter220-240V 25VA 50/60Hz | Output2x12kV Vpp15mA | AB100% 3min |
